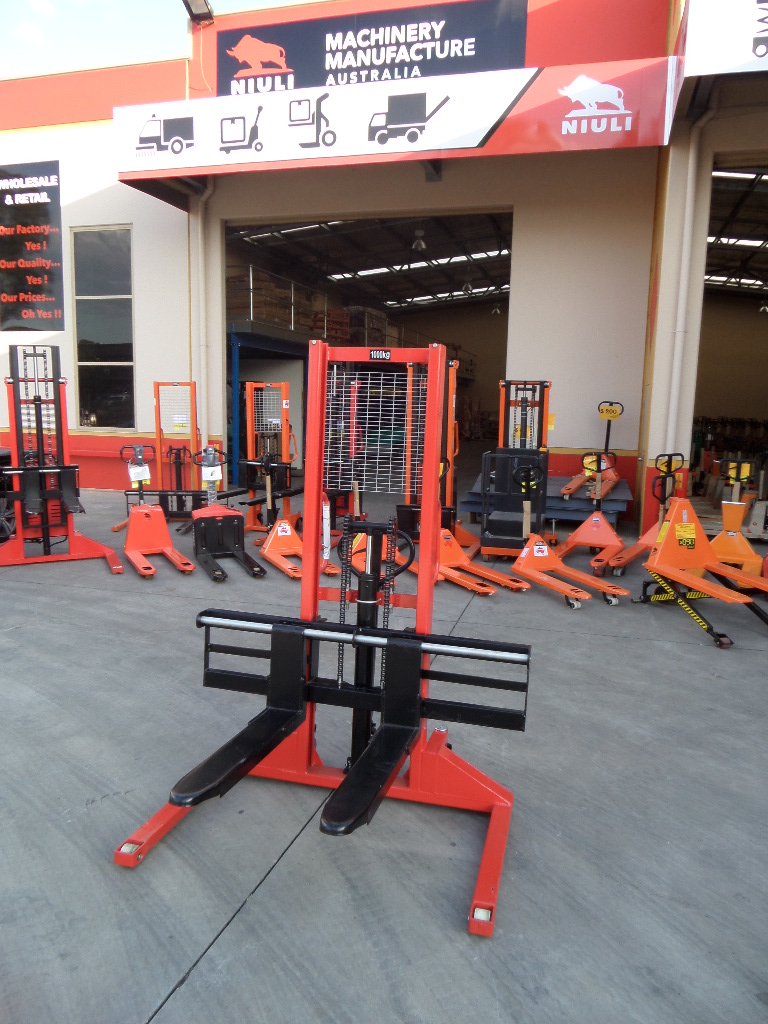

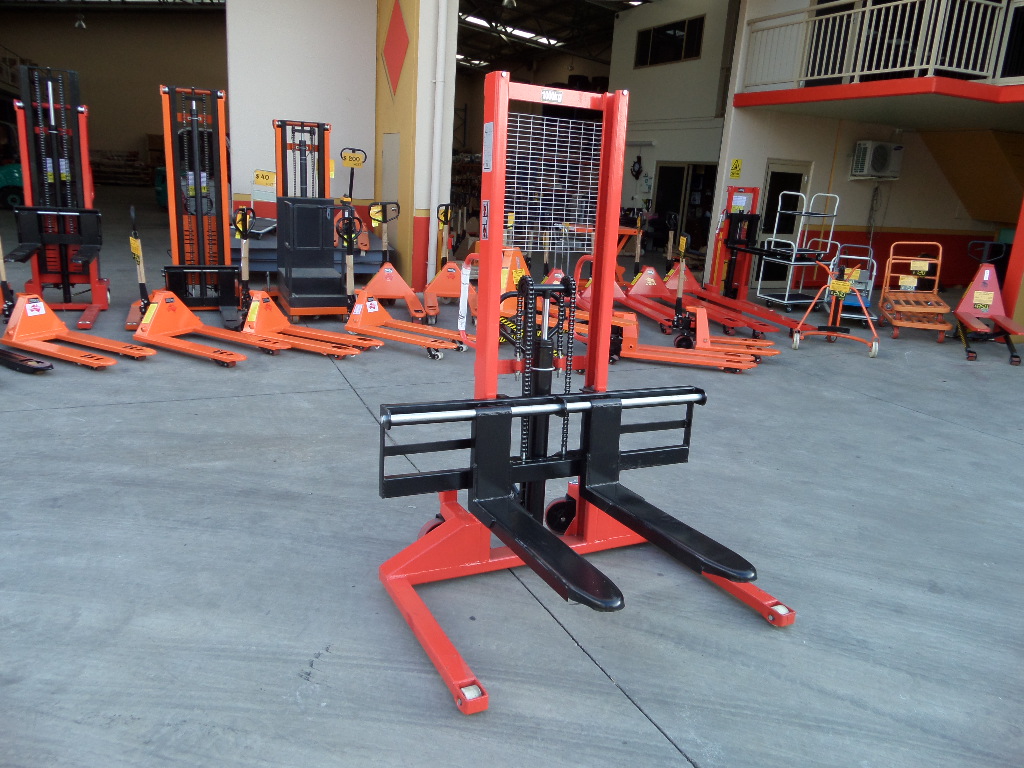

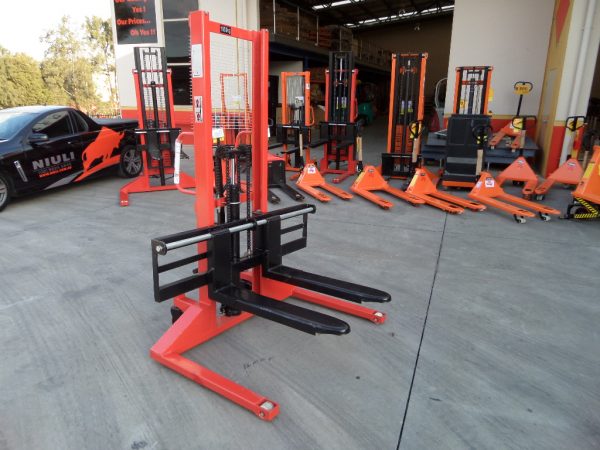

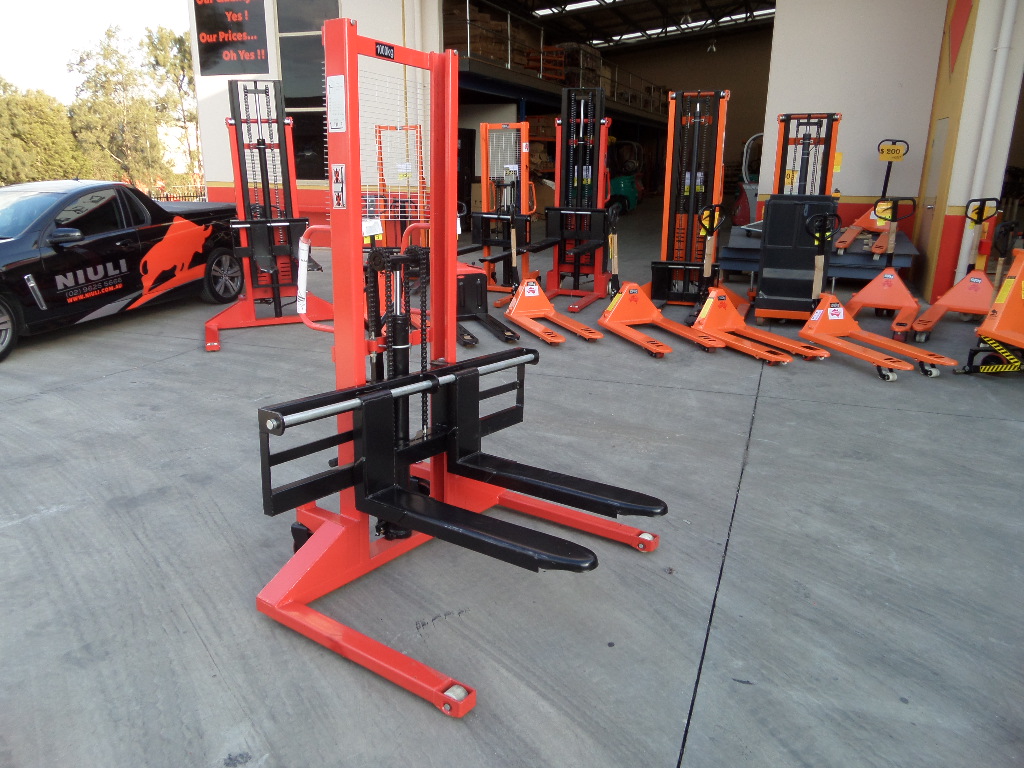

S10W – Manual Straddle Stacker 1Ton/1.6m
$1,800 +GST
Or - 12 monthly installments - NO interest
Capacity: 1000kg, Lift Height: 1600mm – Capacity at 1.6m is 700kg
Manual push, pull, lift and drop

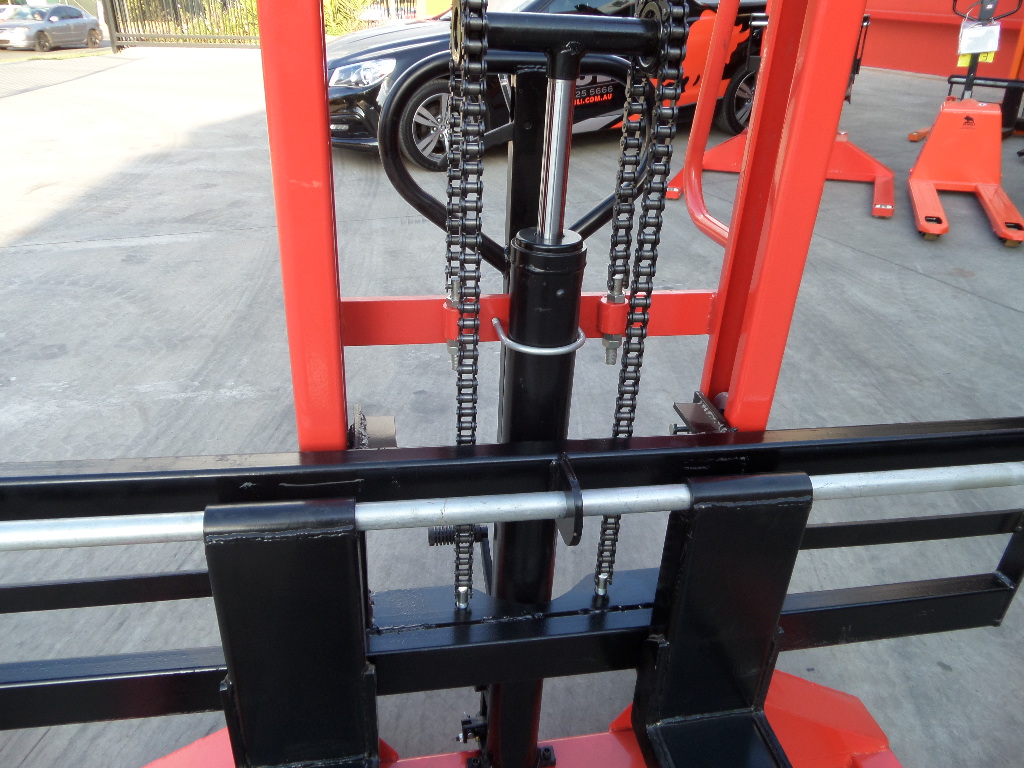

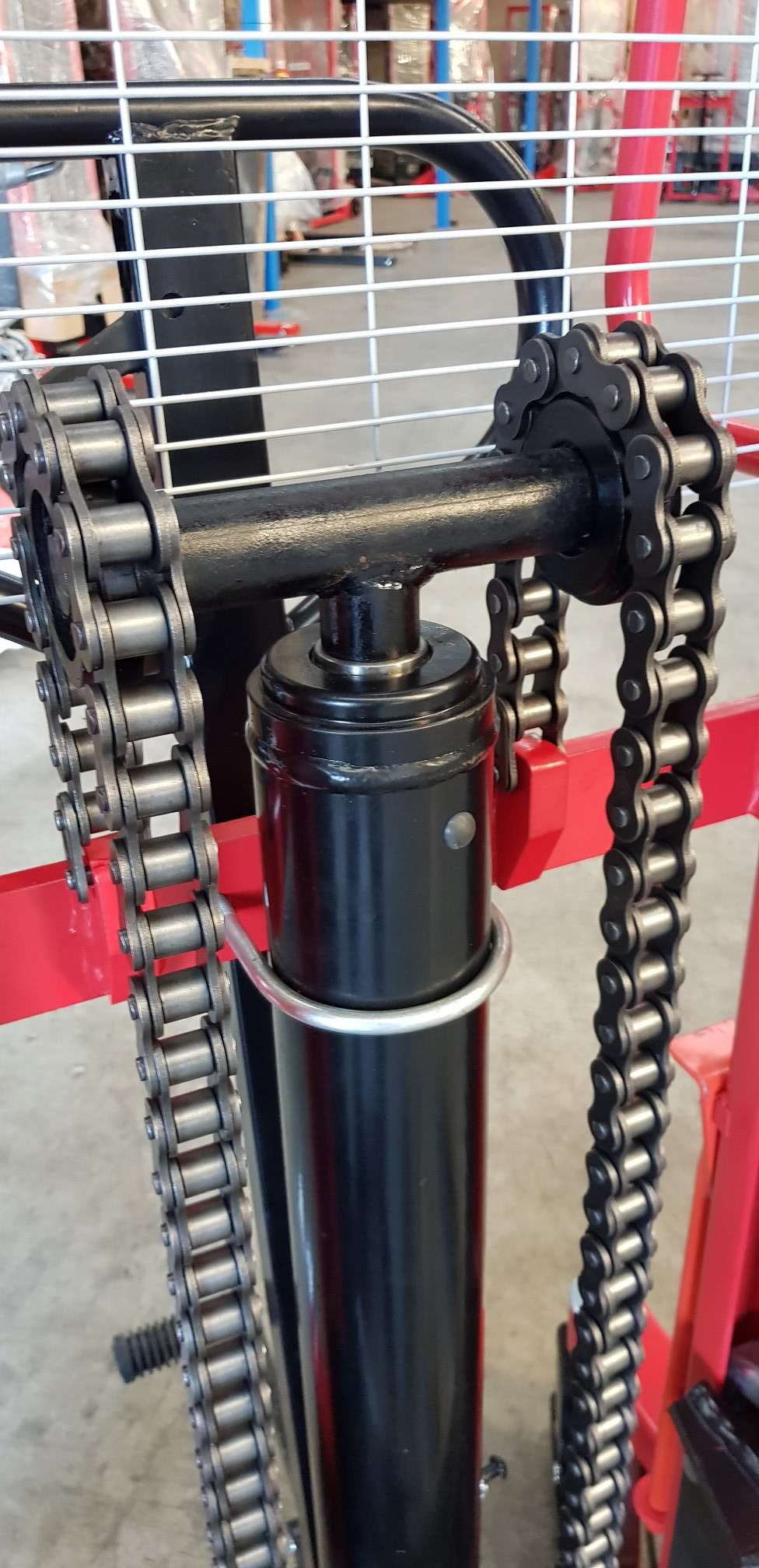

Extra heavy duty steel frame, chain and ram
Suitable for all heavy and light loads
Suitable for lifting standard and narrow pallets, skids, safes, equipment, boxes, machinery, etc
Economic and mobile work aid – can be used as a pallet jack as well
Hand or foot pedal pump up

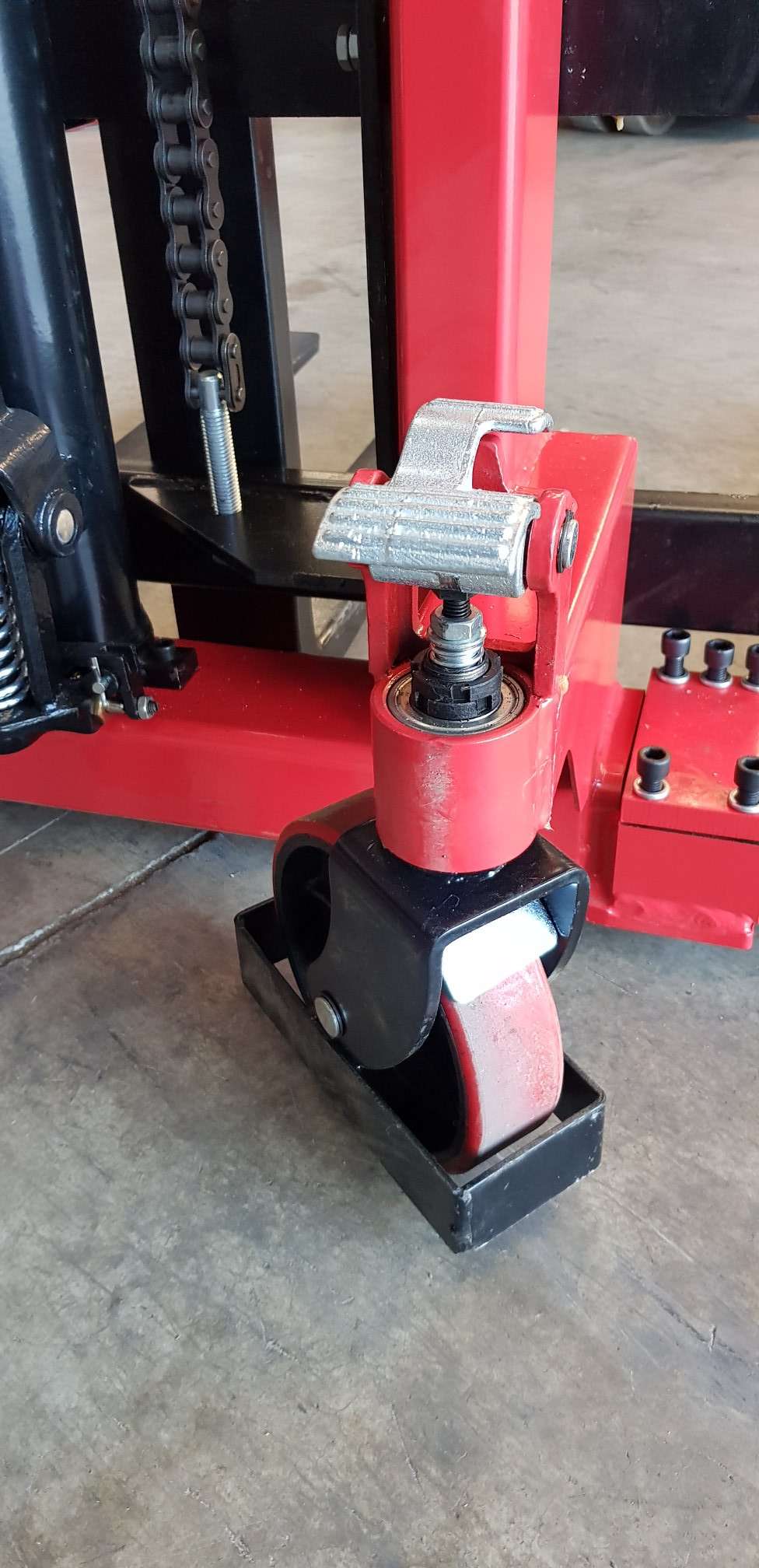

Foot operated brake system for extra safty
RRP $2,000+GST – Now $1,800+Gst ($1,980 inc. GST)
* Available in S10WQ – Quick lift – $100+GST extra
* For Product Specs, please click “SPECS” next to “FEATURES” under picture above.
Single fork length 1150mm, width 150mm, thickness 65mm
Min-Max Fork Height: 80mm-1600mm
Adjustable forks width: 310mm-1490mm (Outer forks tips)
Clearance between forks: 0 – 1100mm
Clearance between legs: 1220mm, Overall legs width: 1400mm
Wheels: front – 70x70mm , rear – 180x50mm
Overall dimensions – weight 252kg – 165(L) x 152(W) x 208(H) cm
Shipping dimensions – weight 294kg – Pallet – 170 x 152 x 222 cm
