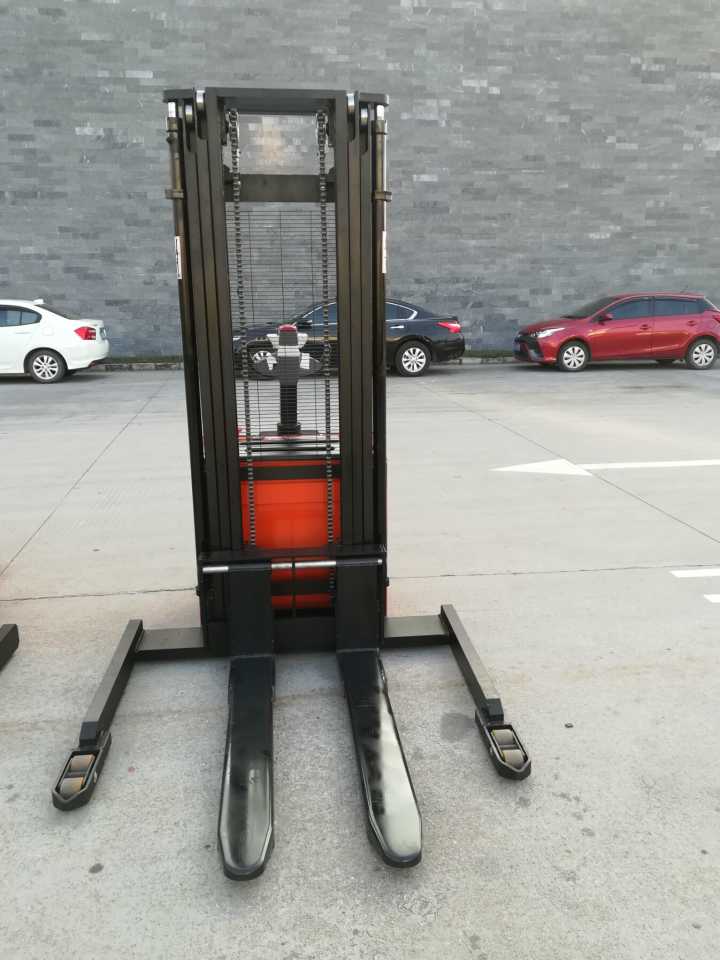

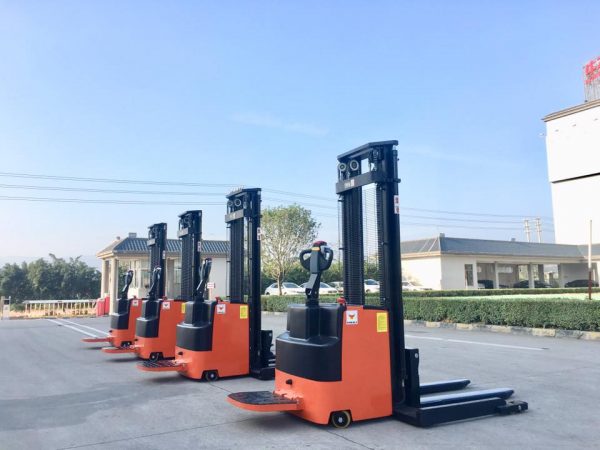

CTQN15/16 – Full Electric Ride-On 1.5Ton/1.6M
$12,500 +GST
Or - 12 monthly installments - NO interest
* This item is made to order and not kept in stock usually – ETA 2-3 months
Capacity: 1500kg, Lift height: 1600mm
AC motor system
Full electric, forward, reverse, lift and drop
Extra heavy duty steel frame, Chain and Ram
Suitable for all heavy and light loads
Suitable for all pallets/skids, equipment, boxes, machinery etc
Economic and mobile work aid – can be used as a pallet jack as well
Automatic magnetic brake system
Polyurethane wheels for none marking, smooth drive and anti slip
Emergency Stop SwitchAvailable in in Narrow or Straddle legs and many different lift heights, details and prices below..
* For Product Specs, please click “SPECS” next to “FEATURES” under picture above.
| Model | CTQN15/16 | CTQN15/20 | CTQN15/25 | CTQN15/30 | CTQN15/35 | CTQN15/40 | CTQN15/45 | CTQN15/50 |
| Sale Price – Narrow (plus GST) | $12,500 | $12,800 | $12,950 | $13,100 | $13,300 | $13,900 | $14,200 | $14,900 |
| Sale Price-Straddle (plus GST) | $12,800 | $13,200 | $13,450 | $13,600 | $13,700 | $14,400 | $14,700 | $15,500 |
| Model | CTQN15/16 | CTQN15/20 | CTQN15/25 | CTQN15/30 | CTQN15/35 | CTQN15/40 | CTQN15/45 | CTQN15/50 |
| Capacity (kg) | 1500 | |||||||
| Max Lifting Height (mm) | 1600 | 2000 | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 |
| Closed Height (mm) | 2080 | 1580 | 1830 | 2080 | 2330 | 1900 | 2060 | 2230 |
| Min.Fork Height (mm) | 85~90 | |||||||
| Load centre (mm) | 500 | |||||||
| Brake Way | Rebirth system moves + Electric at butterfly release | |||||||
| Wheel type | Polyurethane | |||||||
| Front Wheel (mm) | Φ80×60 | |||||||
| Rear Wheel (mm) | Φ130×55 | |||||||
| Traction Wheel (mm) | Φ230×75 | |||||||
| Fork size (mm) | 1150x160x65 | |||||||
| Max fork width (mm) | 680 | |||||||
| Total length (mm)Pedal closed | 2320 | |||||||
| Total width (mm) | 850 | |||||||
| Min Turning radius(mm) | R1600 | |||||||
| Min turning radius(open pedal) | R2010 | |||||||
| Lifting speed(load/unload) | 90/65mm/s | |||||||
| Lowering speed(load/unload) | Controllable ≤500mm/s | |||||||
| Traction speed(load/unload) | 6/5km/h | |||||||
| Max grade ability(load/unload) | 15/6% | |||||||
| Self Weight Without battery(KG) | 710 | 730 | 750 | 785 | 820 | 860 | 895 | 930 |
| Battery weight(±5%) (KG) | 220 | |||||||
| Battery Volts/ampere | 2Vx12/240Ah | |||||||
| Battery Charger | AC220V/50(60)Hz/DC24V/40A | |||||||
| Traction motor | 1.5KW | |||||||
| Lift motor | 2.2KW | |||||||
